Quick and easy set up

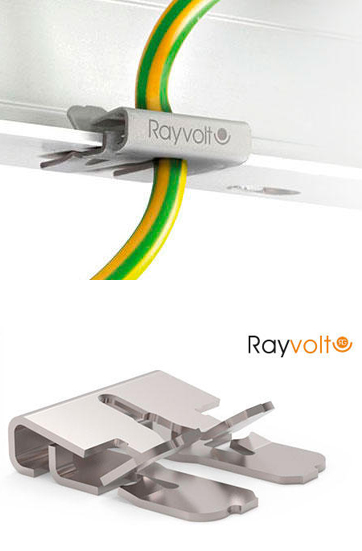

• Just one single action required to cut wire insulation, connecting the wire and fixing it to the frame.
• Free positioning on frame and regarding distances between modules.

Efficient

• Mechanically and electrically: complies with product norms iec61730-2:2007, iec60947-1:2007 and en60068-2-11: 1999¹.

Large scope of use

• For all modules with aluminium frame thickness from 1,5 to 2,5 mm and multi-strand flexible cable cross section of 6 mm² (h07v-k6 mm²).

¹ Test report from bureau veritas available on demand.
